- SKU: JAM72D30-535/MB
- BARCODE:
- VENDOR: Solar Cellz Inc
JA Solar 535W Bifacial Solar Panel — 144 Cells
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description

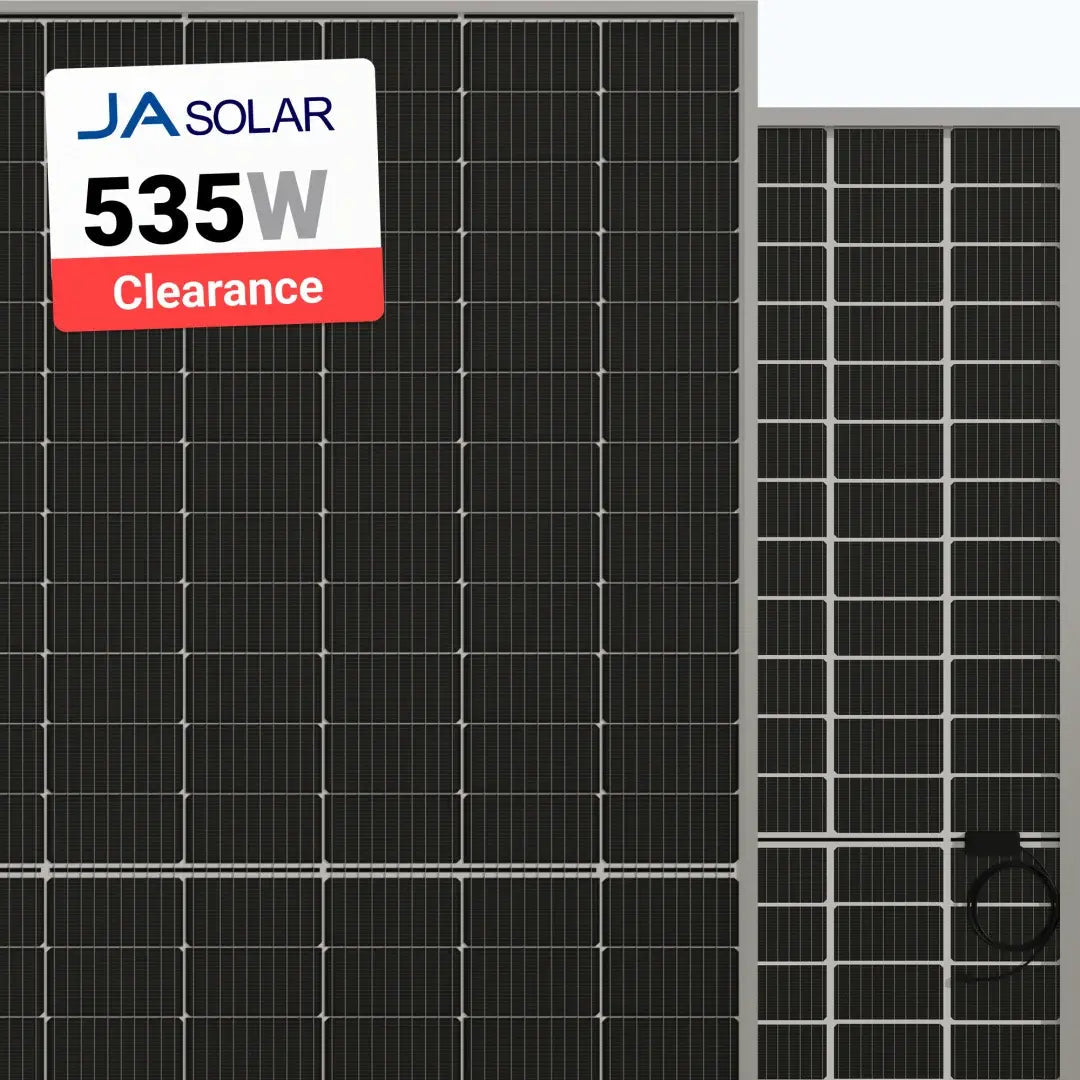

JA Solar 535W Bifacial Solar Panel — 144 Cells
Take advantage of premium solar performance at an exceptional value with the JA Solar 535W Bifacial Solar Panel (Model JAM72D30-535/MB). This high-output, 144-cell monocrystalline bifacial module delivers reliable energy production, enhanced bifacial gain, and robust durability — now offered at clearance pricing for cost-savvy projects.
Key Features & Benefits
High Power Output — 535 Watts
With a rated power of 535W, this solar panel delivers strong energy production per panel, helping you maximize generation and reduce system cost per watt.
Bifacial Solar Technology
Equipped with bifacial cells and a transparent backsheet, this module captures sunlight on both the front and rear surfaces, increasing energy yield when mounted over reflective surfaces (like concrete, gravel, or white roofing).
144-Cell Monocrystalline Design
144 high-efficiency mono cells provide excellent performance and improved low-light response, making this panel ideal for residential, commercial, and industrial solar systems.
Durable Construction for Outdoor Use
Built with robust tempered glass and a corrosion-resistant frame, this module withstands demanding outdoor conditions with strong mechanical load ratings:
-
Snow load: 5400 Pa
-
Wind load: 2400 Pa
ensuring long-term reliability.
Enhanced Performance in Real-World Conditions
Low temperature coefficients and excellent electrical characteristics help maintain output in high-temperature and low-irradiance environments.
Weatherproof, Installer-Friendly Design
Includes an IP68-rated junction box and standard MC4-compatible connectors for secure, weatherproof connections and easier field installation.
Wide System Compatibility
Designed for grid-tie, hybrid, and battery-backed systems with a maximum system voltage up to 1500 Vdc making it suitable for modern solar arrays.
Typical Specifications
| Specification | Details |
|---|---|
| Model | JAM72D30-535/MB |
| Rated Power (Pmax) | 535 W |
| Cell Count | 144 |
| Cell Type | Monocrystalline Bifacial |
| Module Efficiency | High (~21.8%+) |
| Open-Circuit Voltage (Voc) | ~49.6 V |
| Voltage at Max Power (Vmp) | ~41.8 V |
| Short-Circuit Current (Isc) | ~13.85 A |
| Current at Max Power (Imp) | ~12.80 A |

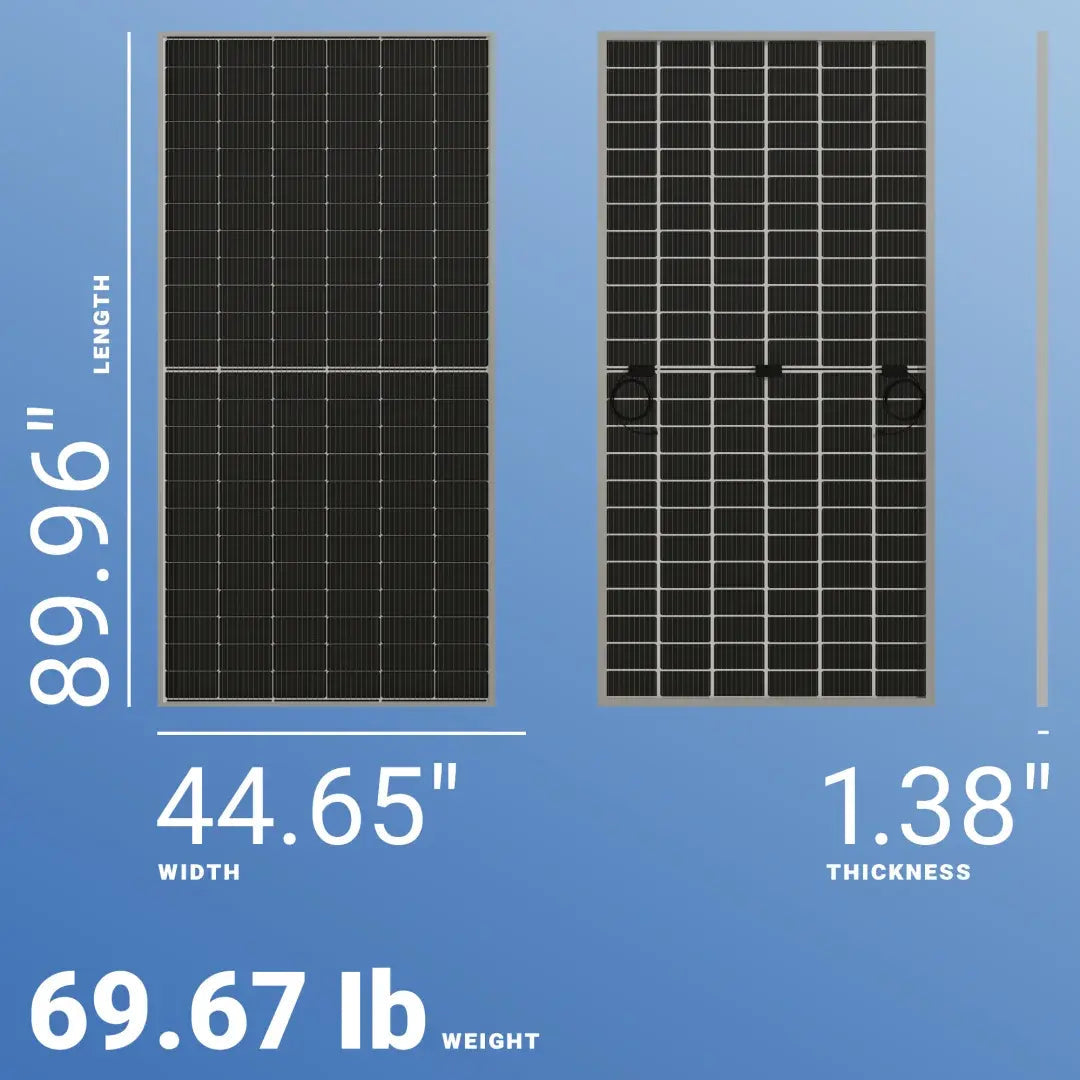

| Dimensions | ~2278 × 1134 × 30 mm |
| Weight | ~27.5 kg |
| Frame | Anodized Aluminum |
| Junction Box | IP68, 3 diodes |
| Connectors | MC4-Compatible |
| Max System Voltage | 1500 V DC |
| Operating Temp | -40 °C to +85 °C |
Ideal For
✔ Residential rooftop solar systems
✔ Commercial & industrial energy installations
✔ Ground-mounted solar farms
✔ Solar + battery hybrid systems
✔ Projects leveraging bifacial energy gain
Why Choose the JA Solar 535W Bifacial Panel?
This JA Solar module combines high output, bifacial energy gain, and long-term reliability delivering excellent performance for systems that demand strong production and dependable operation. With clearance pricing, it’s an excellent choice for integrated solar projects, cost-conscious buyers, and high-yield installations.
Document: Specification Sheet
Exceptional Energy Efficiency
JA Solar is renowned for its innovative approach to solar technology, and the 535W Bifacial Solar Panel is no exception. This panel features 144 cells that enhance its energy conversion efficiency. Because of its bifacial design, it captures sunlight from both sides, maximizing energy output. Therefore, if you are looking for a reliable solar solution, the JA Solar panel is an excellent investment.
Durable and Reliable Design
Durability is a key factor when investing in solar panels. The JA Solar 535W Bifacial Solar Panel is built to withstand various weather conditions, which ensures long-term reliability. Its robust materials can resist heavy winds and hail, providing peace of mind for users. Additionally, this panel is designed for easy installation, making it a perfect choice for both residential and commercial applications.
Environmental Impact and Savings
Switching to solar energy is essential for reducing carbon footprints. The JA Solar 535W Bifacial Solar Panel not only helps in generating power but also contributes to environmental sustainability. Using solar energy saves money on electricity bills, making it a financially sound choice. So, if you’re keen on cost-saving and eco-friendly solutions, this solar panel stands out as a favorable option for all energy needs.
