JA Solar 410W Solar Panel — 144-Cell High-Efficiency Module (Limited Stock)
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
JA Solar 410W: High-Efficiency Solar Solution
Get great value and reliable performance with the JA Solar 410W Solar Panel (Model JAM72S10-410/MR) a high-output, commercial-grade photovoltaic module from one of the world’s leading solar manufacturers. This 144-cell monocrystalline panel delivers excellent efficiency and durability for grid-tie, off-grid, and hybrid solar systems, now available at liquidation pricing.
Key Features & Benefits
Rated 410 Watts of Clean Power
Designed to deliver up to 410W peak output, this panel provides strong energy generation for residential, commercial, agricultural, and RV/boat solar installations.
Advanced 144-Cell Monocrystalline Technology
Constructed with high-efficiency monocrystalline cells in a 144 half-cell layout, this module achieves an excellent 20.4% efficiency rating, helping you maximize energy harvest per square meter.
Durable, Weather-Resistant Construction
Built with a sturdy 40 mm aluminum frame and 2.8 mm tempered glass, this panel withstands harsh outdoor environments. It offers long-term mechanical strength with:
-
Front snow/wind load resistance up to 5400 Pa
-
Backside resistance up to 2400 Pa
Robust Electrical Design
Includes a IP68-rated junction box with 3 bypass diodes and MC4 or MC4-compatible connectors, ensuring secure, weatherproof connections for reliable field performance.
Excellent Temperature Performance
With a low temperature coefficient (≈ -0.35%/°C), this panel suffers minimal power loss in hot conditions — improving real-world energy output throughout the year.
Versatile System Compatibility
Works with standard grid-tie and off-grid inverters; max system voltage up to 1000 VDC for flexible PV system design.
Typical Specifications
| Specification | Details |
|---|---|
| Rated Power (Pmax) | 410 W |
| Cell Count | 144 (6×24 half-cells) |
| Module Efficiency | 20.4% |
| Open Circuit Voltage (Voc) | 50.12 V |
| Maximum Power Voltage (Vmp) | 41.88 V |
| Short Circuit Current (Isc) | ~10.45 A |
| Maximum Power Current (Imp) | ~9.79 A |

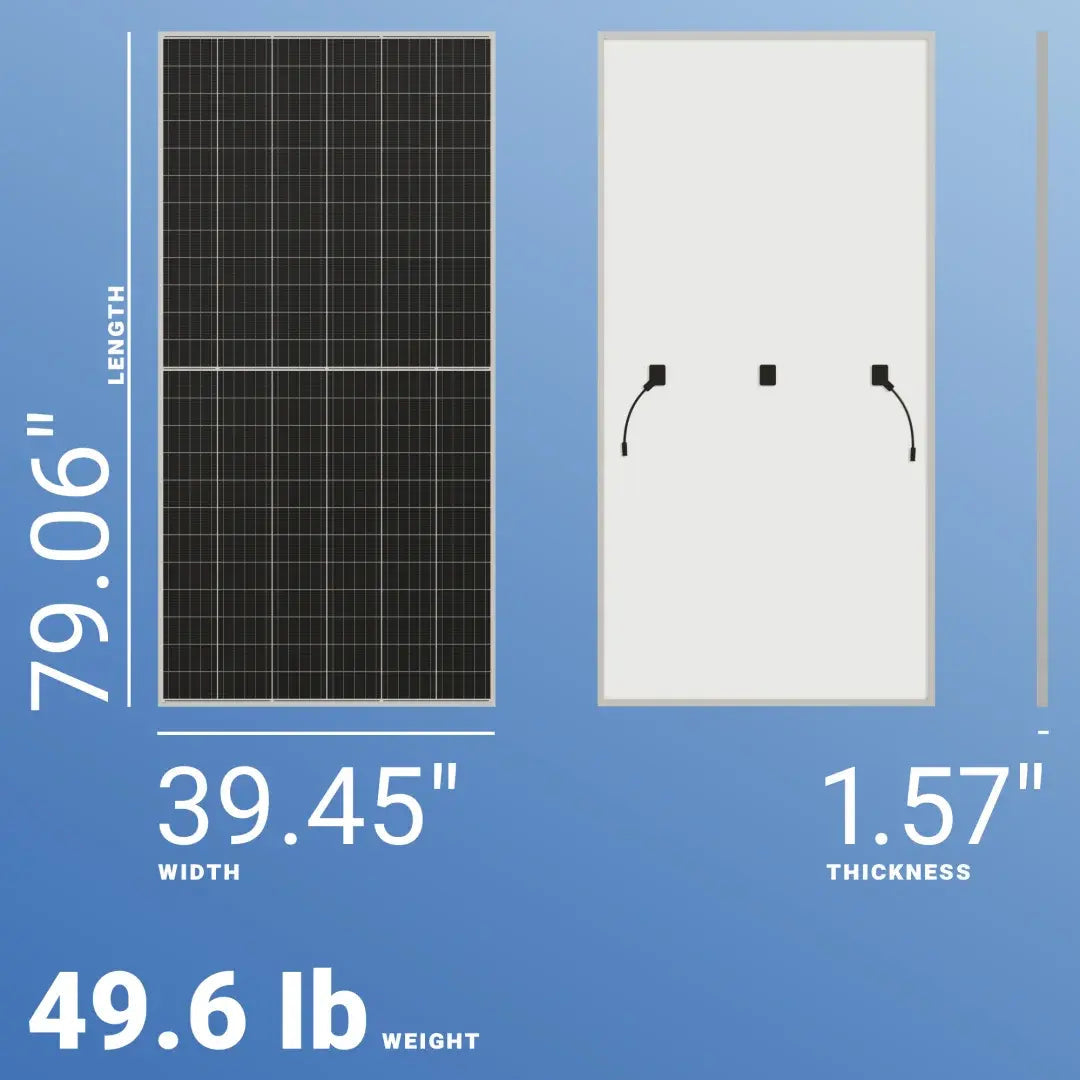

| Dimensions | ~2015 × 996 × 40 mm |
| Weight | ~22.7 kg |
| Connector Type | MC4 or compatible |
| Junction Box | IP68, 3 diodes |
| Max System Voltage | Up to 1000 VDC |
| Operating Temp Range | -40 °C to +85 °C |
Applications
-
Residential rooftop solar
-
Commercial and industrial solar arrays
-
Off-grid cabins and remote power systems
-
RV, marine, and mobile solar installations
-
Grid-tie and hybrid systems
Why Choose This Panel?
This JA Solar 410W module blends industry-leading efficiency, robust mechanical strength, and a trusted 25-year performance warranty (with a 12-year product warranty), making it a dependable choice for long-term solar energy generation — now offered at a liquidation price for budget-savvy projects
Exceptional Power Output
The JA Solar 410W solar panel is designed to deliver exceptional power output. Featuring 144 high-efficiency cells, this module maximizes energy capture, ensuring you receive more electricity from the sunlight. This is particularly advantageous if you have limited roof space, as you can generate more energy from fewer panels. So, whether you are looking to power your home or business, this module can help you meet your energy needs efficiently.
Durability and Reliability
Built to last, the JA Solar 410W solar panel is constructed with high-quality materials to withstand harsh weather conditions. It is resilient against extreme temperatures, hail, and heavy winds, making it a reliable option for various environments. Therefore, you can have peace of mind knowing that your investment is well protected and will provide consistent performance over the years. In fact, many users report a significant reduction in their energy bills after installation.
Easy Installation and Maintenance
This solar panel is designed for easy installation, thanks to its lightweight and compact design. It can be effortlessly mounted on most rooftops, ensuring quick and efficient setup by professional installers. Additionally, maintenance is minimal, as the panels are self-cleaning under rain conditions. Because of this, homeowners can enjoy an energy-efficient solution without the constant burden of upkeep.
Document: Specification Sheet
