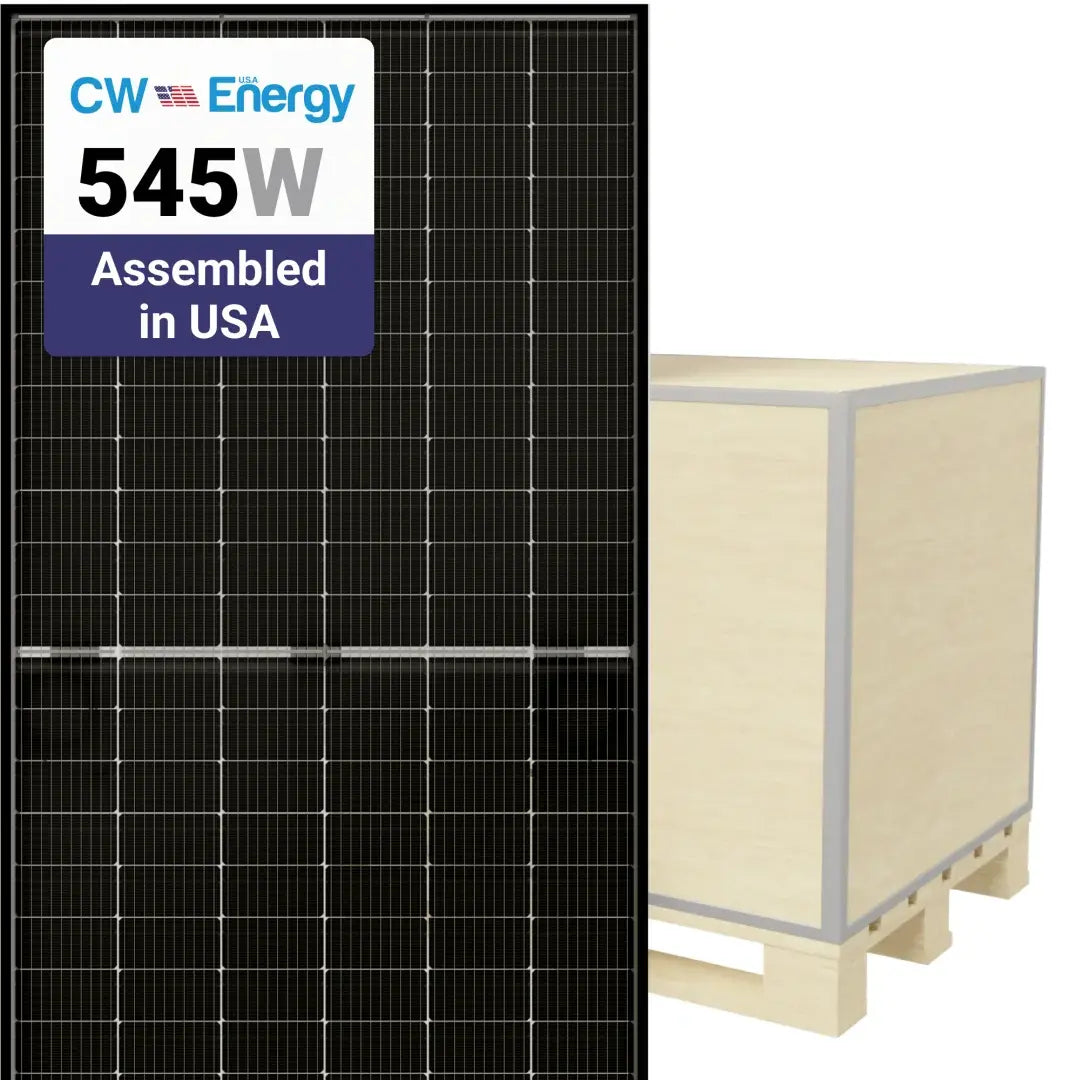

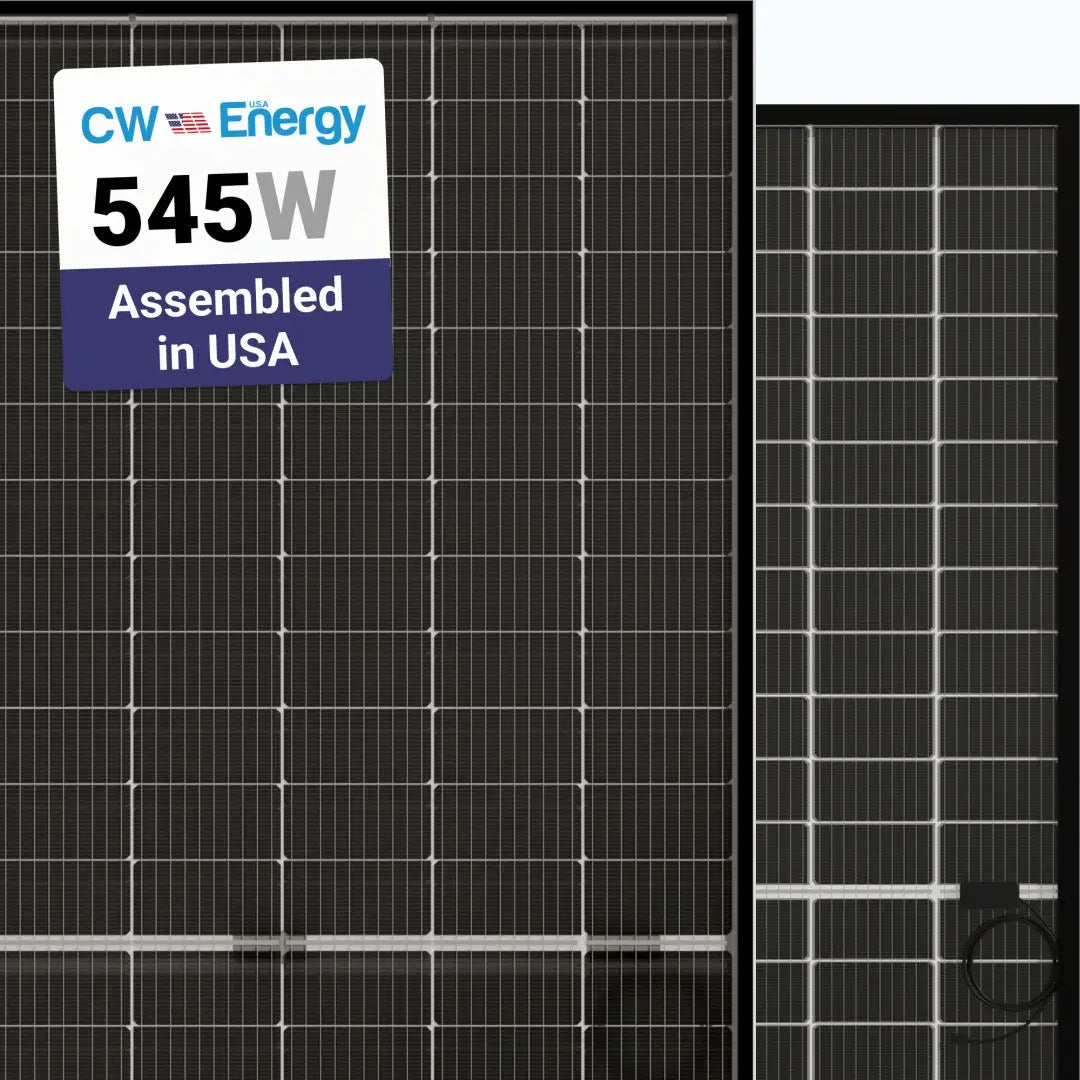

CW Energy 545W Bifacial Solar Panel — 144 Cells
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
Exploring the CW Energy 545W Bifacial Solar Panel
Power your solar system with the CW Energy 545W Solar Panel (Model CWT545-144PMB10) a high-output, bifacial photovoltaic module built with quality and performance in mind. Designed with advanced 144-cell monocrystalline technology and a bifacial design, this panel delivers excellent energy production, durability, and long-term reliability. Its robust construction and strong electrical output make it an ideal choice for residential, commercial, and utility solar installations.
Key Features & Benefits
545 Watts of Rated Power
With a 545W output, this solar panel provides significant energy generation per panel — increasing system capacity while reducing overall cost per watt.
Bifacial Design for Extra Energy Gain
The bifacial module can capture sunlight from both the front and rear faces, allowing for additional energy production when installed over reflective surfaces like light gravel, concrete, or white roofing.
High-Efficiency 144 Monocrystalline Cells
Built with 144 high-efficiency monocrystalline cells and premium PERC technology, this panel delivers excellent performance in a variety of lighting conditions, including low-light and partial shade.
Rugged Weather-Resistant Construction
Constructed with durable tempered glass and a corrosion-resistant frame, the panel is engineered to withstand demanding outdoor environments and heavy mechanical loads:
-
Snow load: high-strength load rating
-
Wind load: robust wind resistance
Helping ensure longevity and performance stability.
Installer-Friendly & System Compatible
Equipped with a weatherproof IP68-rated junction box, bypass diodes, and MC4-compatible connectors, this panel works with modern grid-tie, battery backup, and hybrid solar systems up to 1500 V DC, providing flexibility for a wide range of installations.
Long-Term Performance Warranty
Typically supported by industry-standard 25–30 year product and performance warranties, giving you confidence in lasting energy production.
Typical Specifications
| Specification | Details |
|---|---|
| Model | CWT545-144PMB10 |
| Rated Power (Pmax) | 545 W |
| Cell Type | Monocrystalline (144 cells) |
| Module Design | Bifacial |
| Open-Circuit Voltage (Voc) | ~51.8 V |
| Voltage at Max Power (Vmp) | ~42.6 V |
| Short-Circuit Current (Isc) | ~13.92 A |
| Current at Max Power (Imp) | ~12.79 A |
| Max System Voltage | 1500 V DC |
| Frame | Durable aluminum alloy |
| Junction Box | IP68, with bypass diodes |
| Connector Type | MC4-compatible |
| Operating Temp Range | –40 °C to +85 °C |
Ideal For
✔ Residential solar rooftop systems
✔ Commercial and industrial solar installations
✔ Ground-mounted solar arrays
✔ Solar + battery hybrid systems
✔ Projects benefiting from bifacial energy gain
Why Choose the CW Energy 545W Panel?
This high-performance module combines strong rated output, bifacial energy gain, and rugged construction to deliver dependable solar power production across a wide range of environments. Assembled in the USA and built for real-world conditions, the CW Energy 545W Solar Panel is an excellent choice for both professional installers and DIY solar projects seeking performance and reliability.
Document: Specification Sheet
Unmatched Efficiency of Bifacial Solar Panels
The CW Energy 545W bifacial solar panel harnesses solar energy from both sides, maximizing energy output. This innovative design captures sunlight reflected from the ground, increasing overall efficiency. However, traditional panels only harness sunlight from one side, limiting their potential. Because of its unique bifacial structure, this panel can produce more energy, making it an excellent choice for homeowners and businesses looking to optimize their energy use.
Designed for Durability and Longevity
Constructed with robust materials, the CW Energy bifacial solar panel is designed to withstand harsh weather conditions. It features a durable glass surface and a sturdy frame that ensures longevity. However, not all solar panels offer such resilience, which can lead to higher maintenance costs. Therefore, investing in this high-quality panel means fewer repairs and a longer lifespan, providing peace of mind for your solar energy investment.
Versatile Applications for Any Environment
These bifacial solar panels are suitable for various applications, from residential rooftops to large commercial installations. They perform exceptionally well in snowy or reflective environments, where they can harness additional light. However, some setups may not fully utilize the benefits of bifacial technology. Therefore, whether you're upgrading an existing solar system or starting anew, the CW Energy 545W panel provides flexibility and efficiency to meet diverse energy needs.
